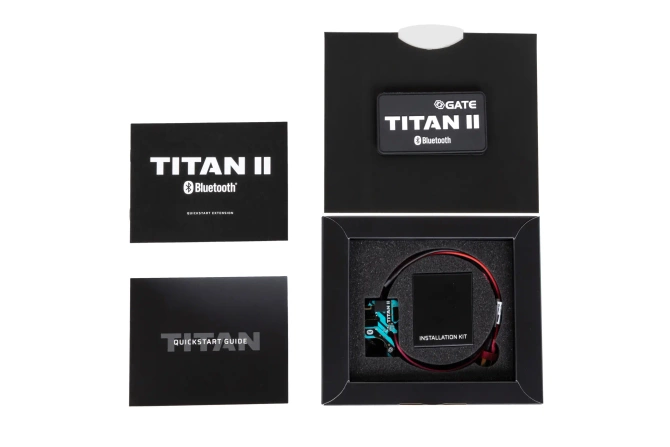

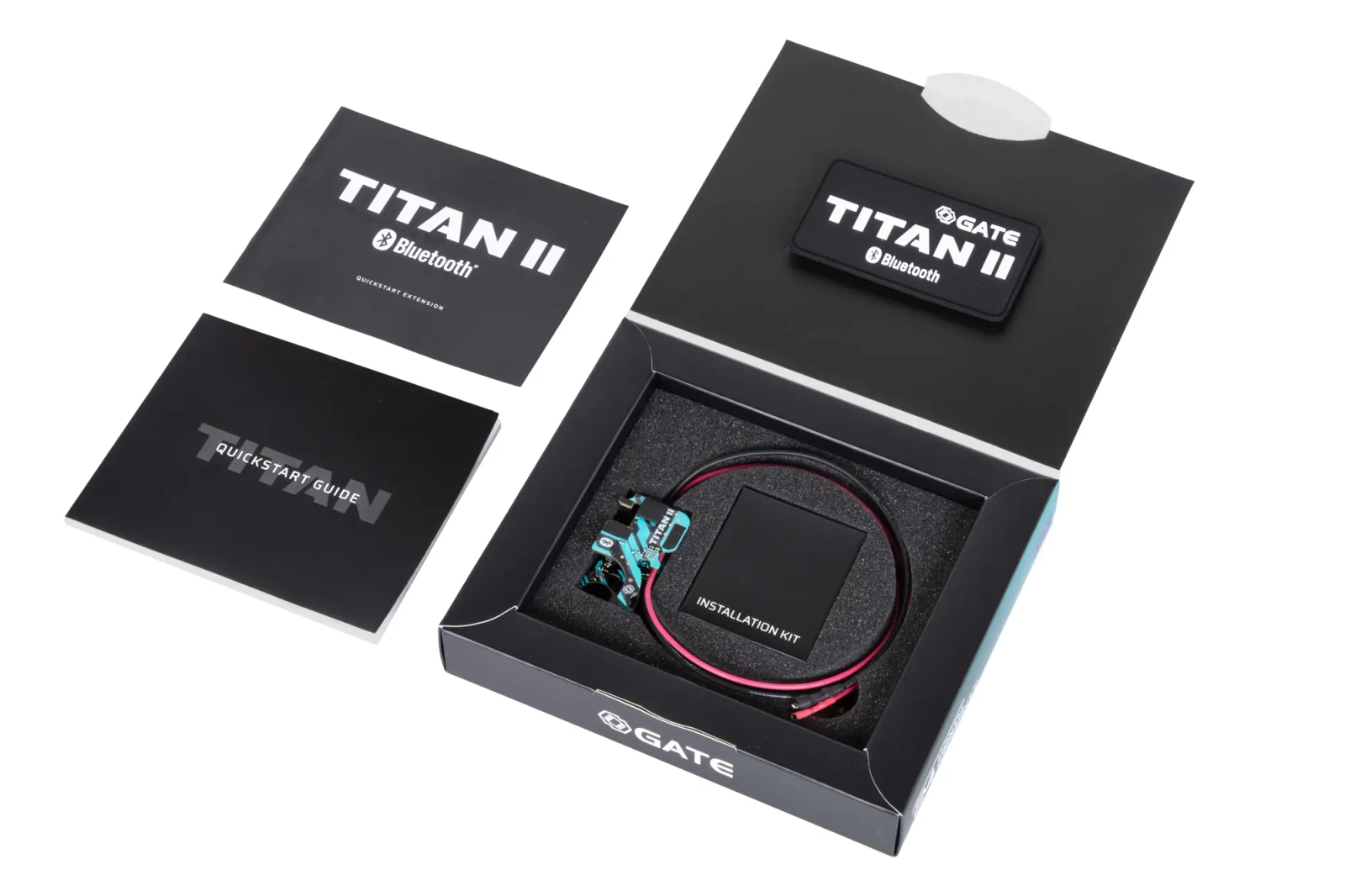

GATE TITAN II Bluetooth® V2 Expert Controller Set (AEG Front)

The GATE TITAN II Bluetooth® V2 Expert (AEG Front)

TITAN II Bluetooth® V2 controller kit is GATE's flagship electronics replacement unit (ETU) for the contact cube by GATE. Built-in Bluetooth 5.2 technology gives direct access to settings, telemetry of the replica and the possibility to use with smartwatches, STATUS and other GATE devices.

Innovative gear sensor, not only counts each tooth, but is also the world's first to determine the direction of gear rotation, offering the the most precise cycle control in replica electric. The Optical trigger sensor allows the setting of the trigger "to the touch" with a precision of up to 50 levels of sensitivity for the first millimetre of trigger movement, while retaining the advantages of the sensor known from the TITAN V2. The TITAN II Bluetooth® V2 is equipped with a multifunctional port ready to to connect additional accessories such as bolt-catch, sensor magazine, hop-up chamber ball illuminator and others.

Technical specifications:

Voltage rating: 3.75-17 VDC

Rated current: 30 A

Maximum no-load current consumption: 27 mA

Unloaded current consumption: 100 µA

Communications: Bluetooth® 5.2 Low Energy

Dimensions (length x width x thickness): 47.2 mm x 28.9 mm x 14.5 mm

Weight of finished product: 28.2g

Operating temperature range: min. -15° C, max. +50° C

Relative operating humidity: ? 80%

Firmware version EXPERT.

Wiring version for electric replicas with wiring to the front.
