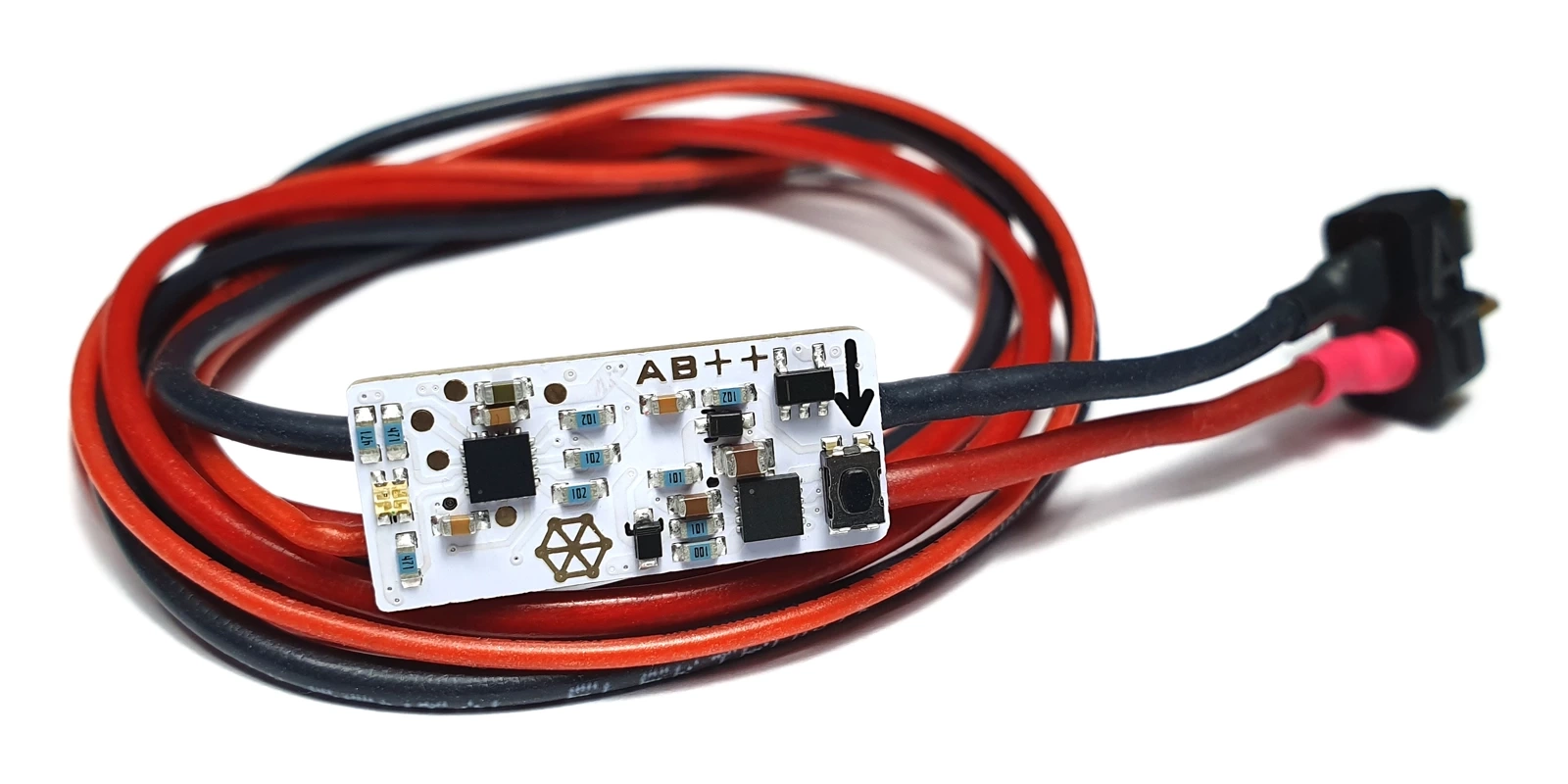

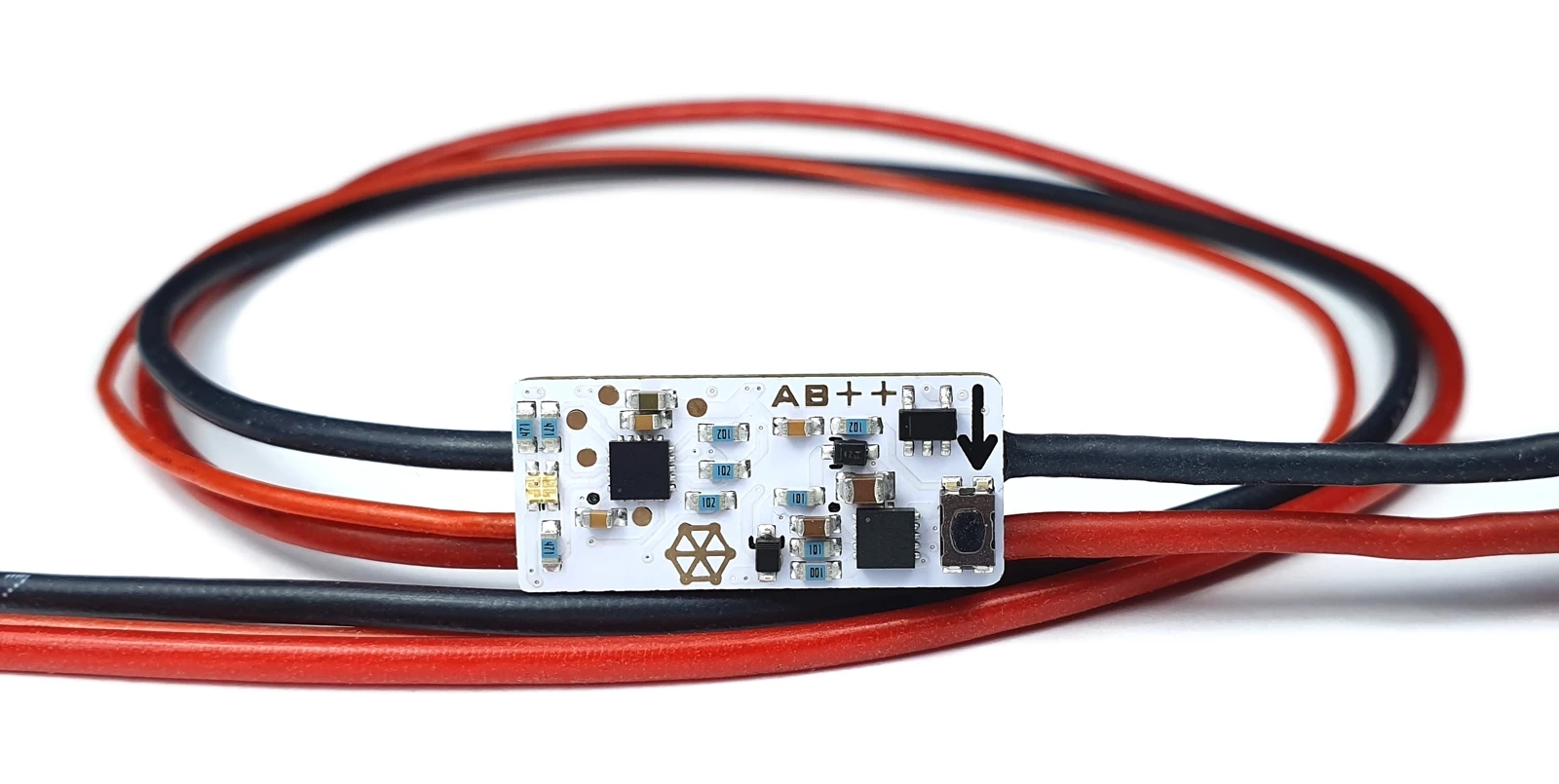

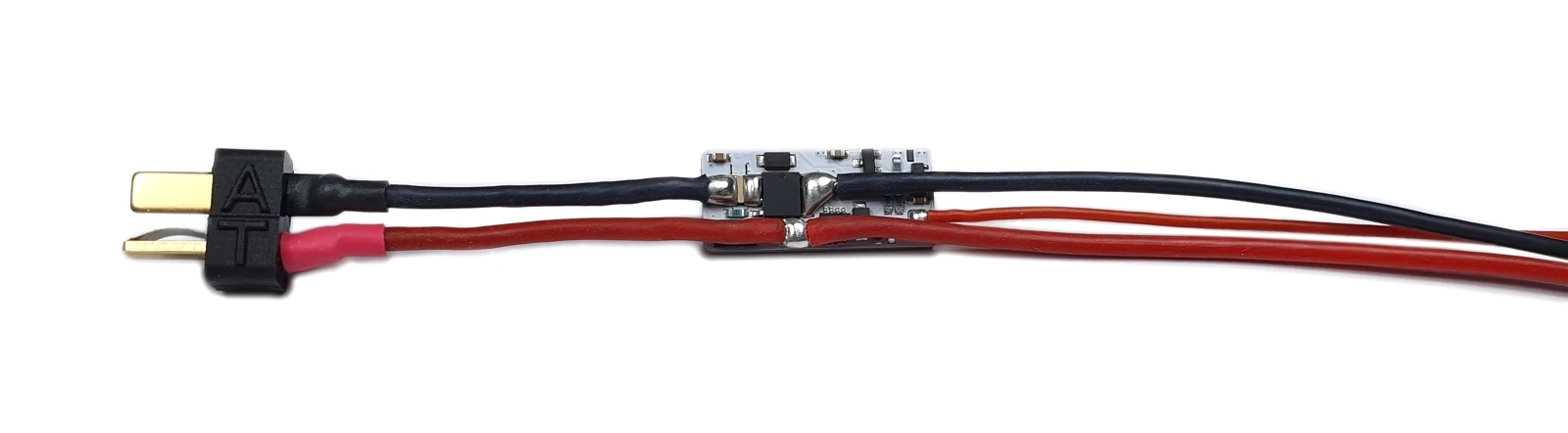

Perun AB++ MOSFET
An advanced MOSFET manufactured by Perun. In addition to its typical function of transferring energy from the battery to the motor, the Perun AB++ MOSFET is equipped with additional, useful functions.
-Programmable fire modes -Single, series or automatic fire can be set at each selector position (except "protected").
-Active brake -Stops the motor after each shot, preventing spring compression and overspin.
-Precocking -The plunger will remain in the rear position after each shot, ensuring that the shot is fired as soon as the trigger is depressed. To release the spring after using precocking, depress the trigger and hold it for 2 seconds.
-Reduced rate of fire
-DMR Mode -Institutes minimum intervals between shots to meet the requirements for DMR replicas at certain competition venues.
-Low Battery Alert -If the battery voltage drops to a dangerously low level, the user will be notified with short beeps repeated every minute.
-Diagnostic System Continuously checks the status of the electronics and the replica. In the event of a problem, it will immediately provide information on what might have caused it, making it easier to rectify the fault.
-Electronic fuse -Protects the replica and the battery in a serious malfunction. It will automatically disconnect the battery if a short circuit is detected or a jam occurs in the gearbox.
All settings are changed using only a quick and easily memorised sequence of movements with a button on the unit itself and a trigger. The system communicates with the user by means of beeps and a multicoloured LED. This allows settings to be changed at any time, even during combat.
AB++ works seamlessly with any battery from 7V to 17V. It can be used with the most extreme configurations, with no restrictions on spring power.
