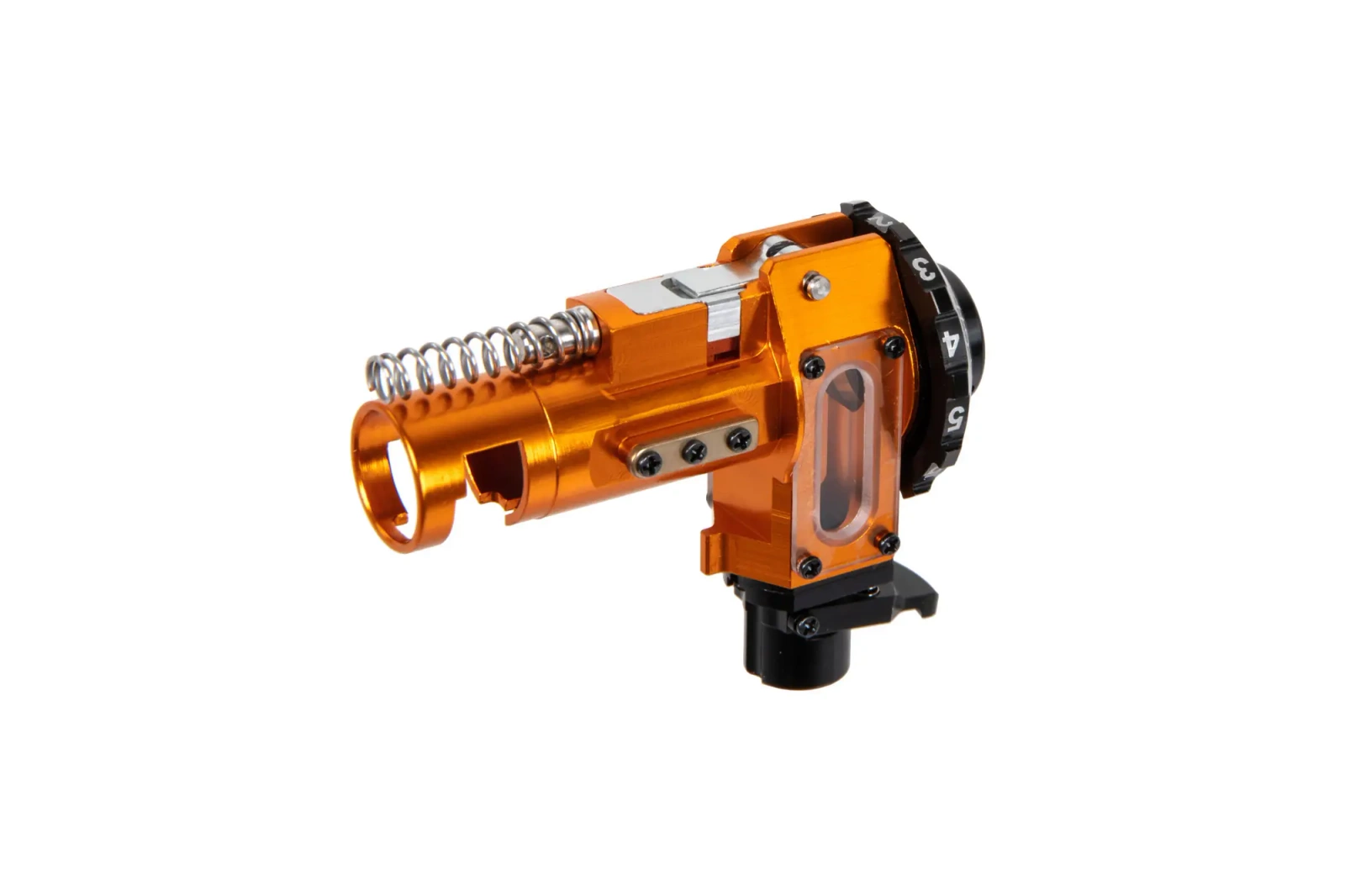

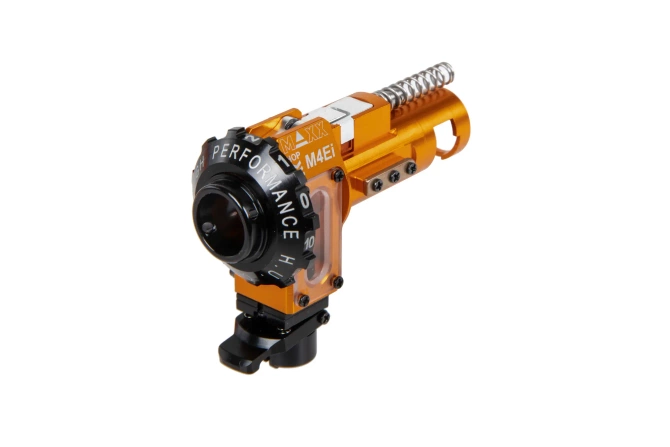

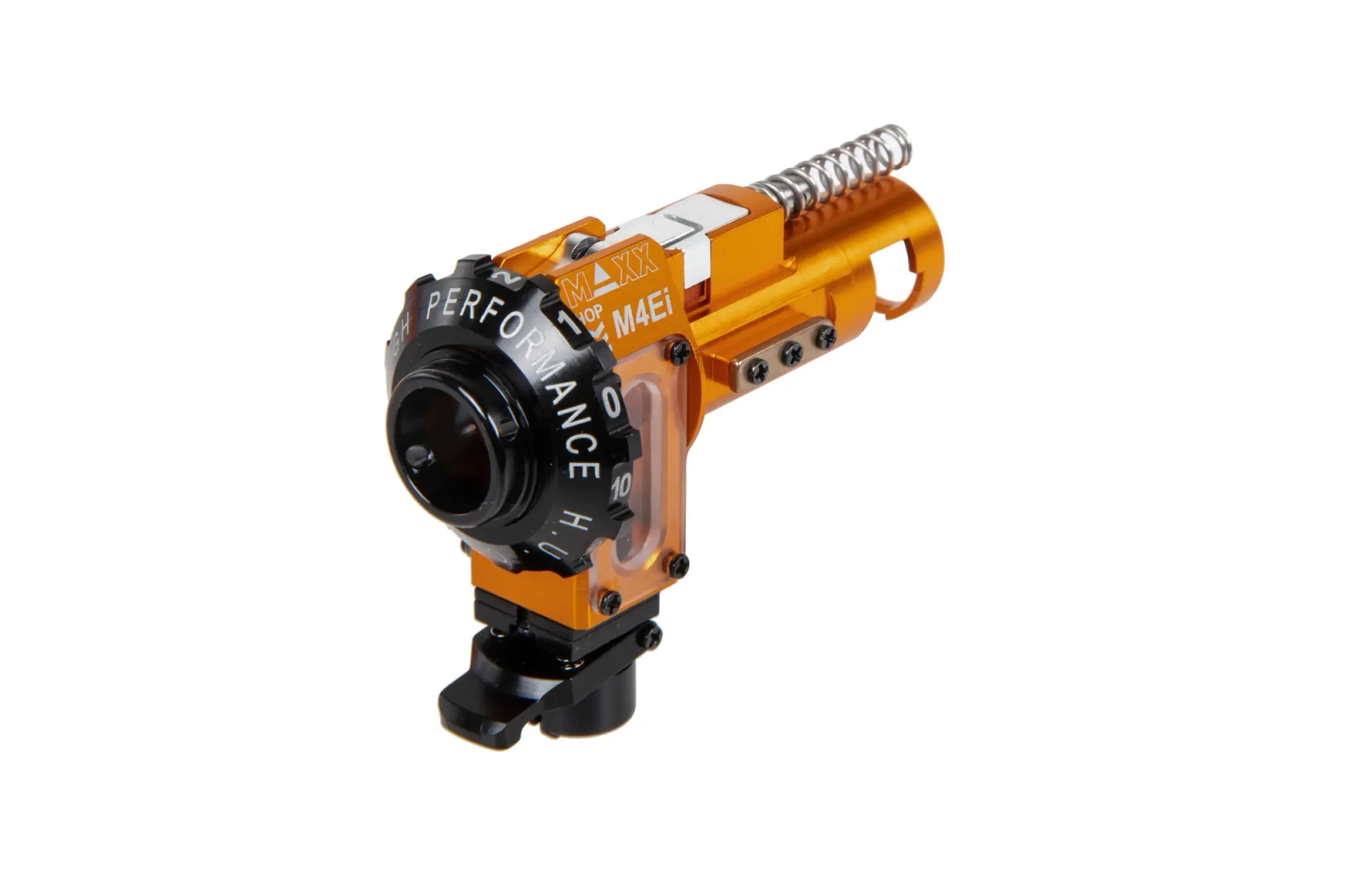

Aluminium Hop-Up Chamber CNC Maxx Model M4Ei (For ICS M4)

Aluminum CNC Hop-Up chamber

The highest quality Hop-Up chamber designed for the tuning of ICS replicas based on the AR platform.

*The Enchanced version of the chamber features an improved pressure system, thanks to an additional O-ring added to the pressure frame of the spacer.  Another important change is the addition of shims to the adapter, so that the pressure of the chamber to the face of the gearbox can be adjusted and the nozzle length thus adjusted

Rotational chambers of the brand Maxx Model Products are dedicated to the most demanding players, offering unprecedented precision performance and perfect operation of the HU system in the replica.

Chamber features:

- precisely manufactured from a block of Aerospace Aluminium using CNC technology
- assured compatibility and tightness with M4/M16 standard Tokyo Marui  replicas (including Covered replicas, however NOT fits KWA)
- rotary knob for adjustment
- redesigned levers and  concave nubs, providing problematic operation with standard and R-hop rubber bands
- removable brass Slot Pin for setup and maintenance
- works with nozzle lengths from 21.00mm to 21.25mm
- full compatibility with most soft and hard HU elastics on the market, with zero FPS drop and ball drop
- equipped with a special clip CNC Delrin Locking C-Clip, preventing barrel vibration and movement
- equipped with 2 compression springs on the top and middle of the chamber (applied to the barrel), ensuring perfect and secure seating in the replica
- compatible with any V2 11mm gearbox / 11.5mm bore
- openable window allowing easy removal of the ball from inside the chamber
- possibility to install a ball illumination module (not included)
- possibility to install a sensor that stops the operation of the motor / HPA drive when the magazine is empty (not included)

Specification:

Length: 51mm
Height: 37.75mm
Hub Outer Diameter (to gearbox): min 11mm - max 11.5mm
Hub Outer Diameter (to outer barrel): min 12mm
Hub Inner Diameter (to nozzle): 8.3mm max
Feeder Outer Diameter (to magazine): min 9.25mm
Feeder Length (to magazine): max 6.25mm
Make: Aluminum 6061

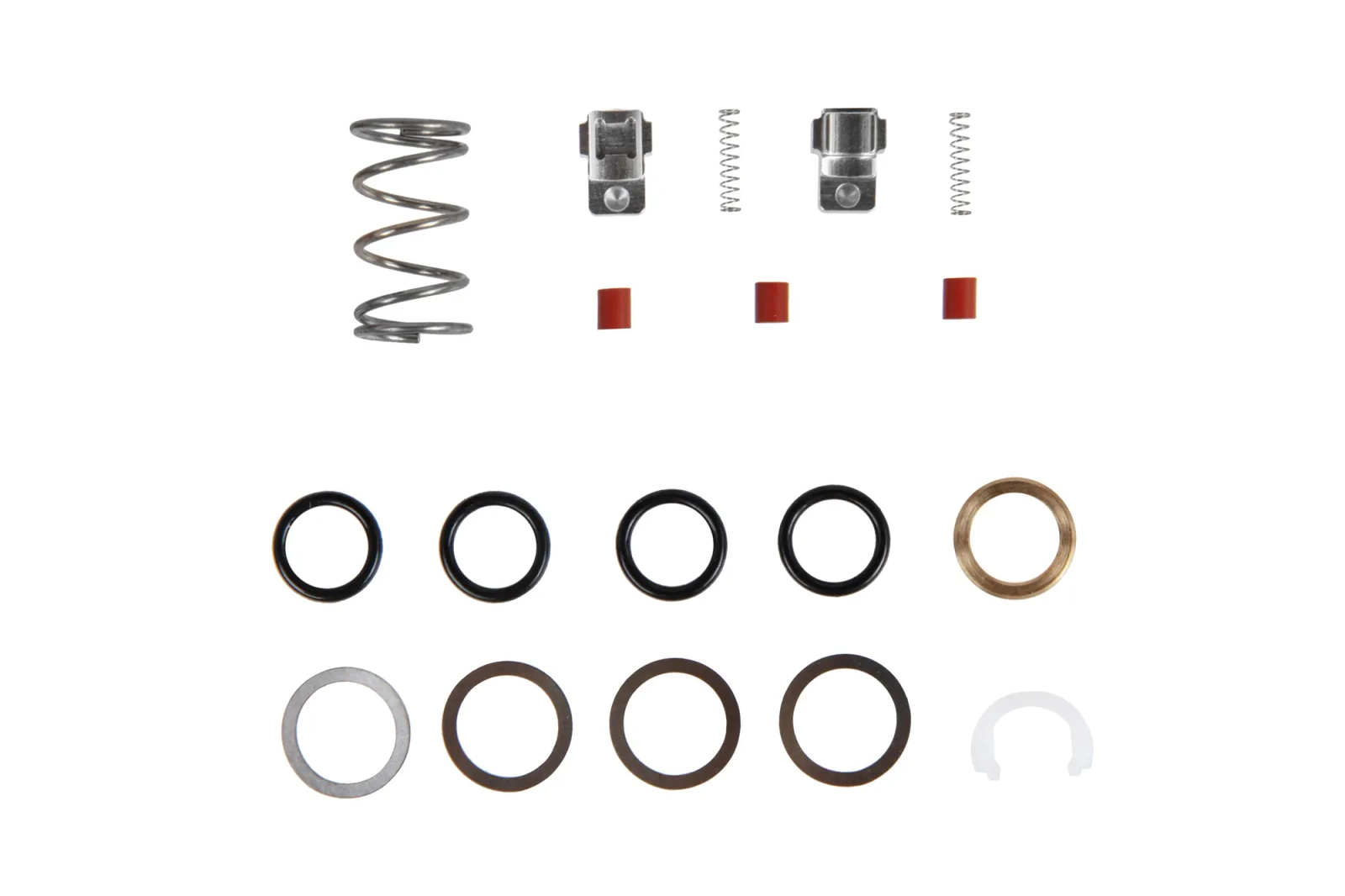

The kit includes:

1 x chamber
2 x clear vinyl cover
1 x CNC Standard-Hop aluminium arm
1 x CNC R-Hop aluminium arm
1 x silicone Standard-Hop Nub Damper
1 x silicone Rubber R-Hop Nub Damper
1 x CNC Aluminum Precision Hop Concave Nub 4.5mm
1 x CNC Aluminum Precision R-Hop Concave Nub 6mm
1 x CNC Brass Threaded Slot Pin
1 x CNC Delrin Locking C-Clip
1 x CNC Brass Barrel Spacer
1 x CNC Brass Spacer Holder Oring
3 x Steel Compression Spring
5x 0.1mm Adapter Washer
4x O-ring
