Aluminium Hop-Up CNC MaxxModel MGi chamber (For ICS replicas)

Aluminium CNC Hop-Up Chamber M4i
*2024
The MG series chambers have been adapted for AEG replicas, allowing  the use of barrels and Hop-Up elastics for GBB.
At the same time, corrections from the E-Series - Enchanced have been applied to it, i.e.:
- Spacers for the Inlet Adaptor
- Additional O-ring on the pressure arm stabilising its operation.

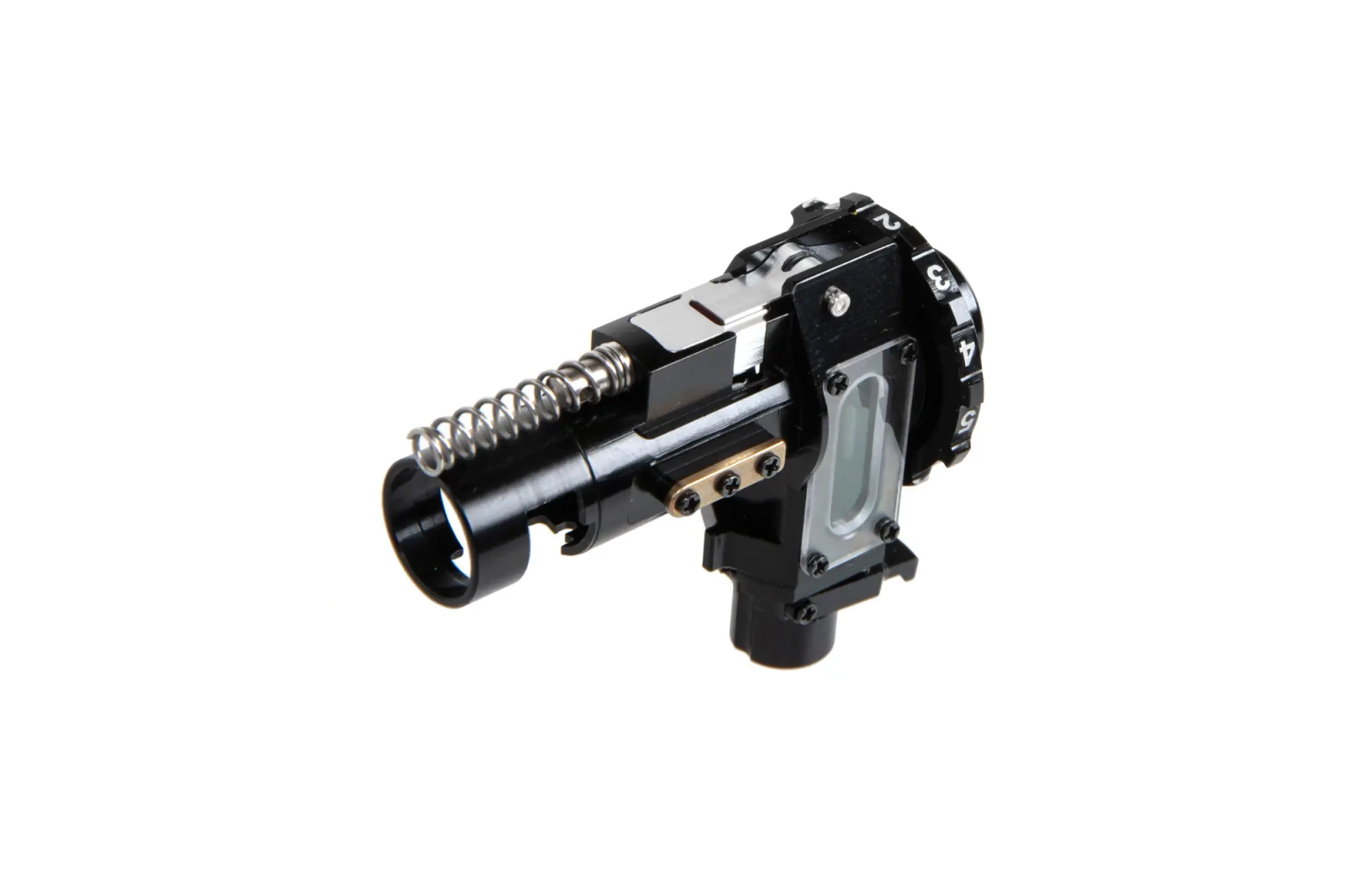

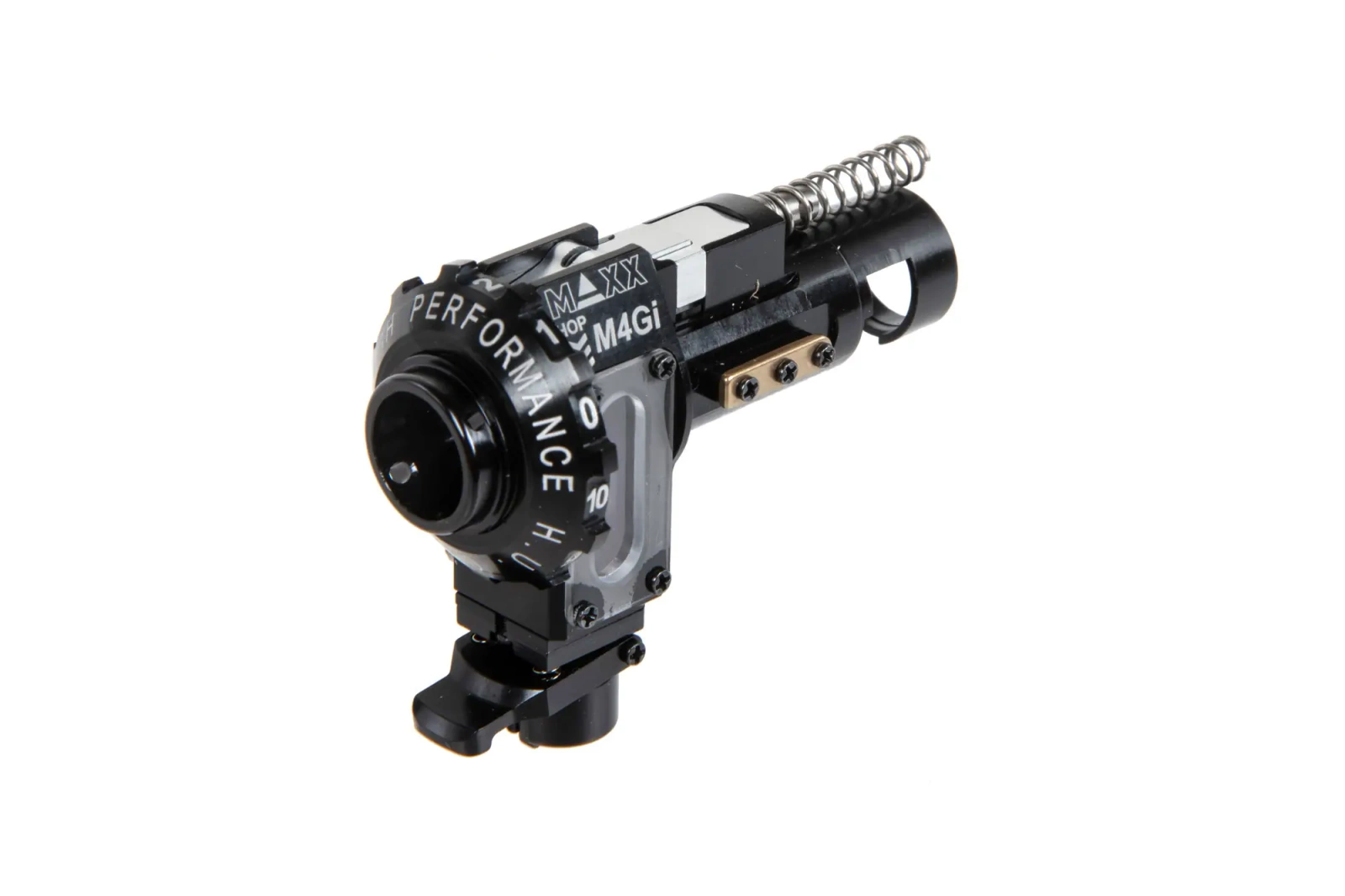

The highest quality Hop-Up chamber designed for tuning replicas of M4/M16 series carbines by ICS. The rotary chambers by Maxx Model Products are dedicated to the most demanding players, offering unprecedented precision manufacturing and perfect operation of the HU system in the replica.

Chamber features:

- precisely manufactured from a block of aircraft aluminium using CNC technology
- assured compatibility and tightness with ICS CXP/CS4/EBB M4/M16 airsoft rifles (including older models)
- rotary knob for adjustment
- redesigned precision HopUp and Bucking Nubs 4mm levers (6mm versions are optional), ensuring problematic operation with standard and R-hop elastics
- removable steel Pivot Pin for setup and maintenance
- works with nozzle lengths from 21.00mm to 21.25mm
- complete compatibility with most soft and hard HU elastics on the market, with zero FPS drop and ball drop
- equipped with a special clip CNC Delrin Locking C-Clip, preventing barrel vibration and movement
- fitted with 2 compression springs on the top and middle of the chamber, ensuring perfect and secure seating in the replica
- fitted with Inlet Adaptor 12mm to the gearbox (11 and 11.5mm versions available separately) to ensure the nozzle is centrally located in the chamber and reduce wobble
- added, replaceable brass side wings for improved chamber fit in the outer barrel
- redesigned "BB Latching System" preventing the BBs from falling out when the magazine is removed from the replica
- Remie holding the BBs can be pressed manually to release the BBs from the chamber
- possibility to mount a ball illumination module (not included)

Specification:

Length: 51.65mm
Height: 38.75mm
Inlet Adaptor Outer Diameter (for gearbox): 12mm
Hub Outer Diameter (for outer barrel): 12mm
Hub Inner Diameter (to nozzle): 8mm
Feeder Outer Diameter (to magazine): min 8.85mm
Feeder Length (to magazine): max 6mm
Make: Aluminum 6061

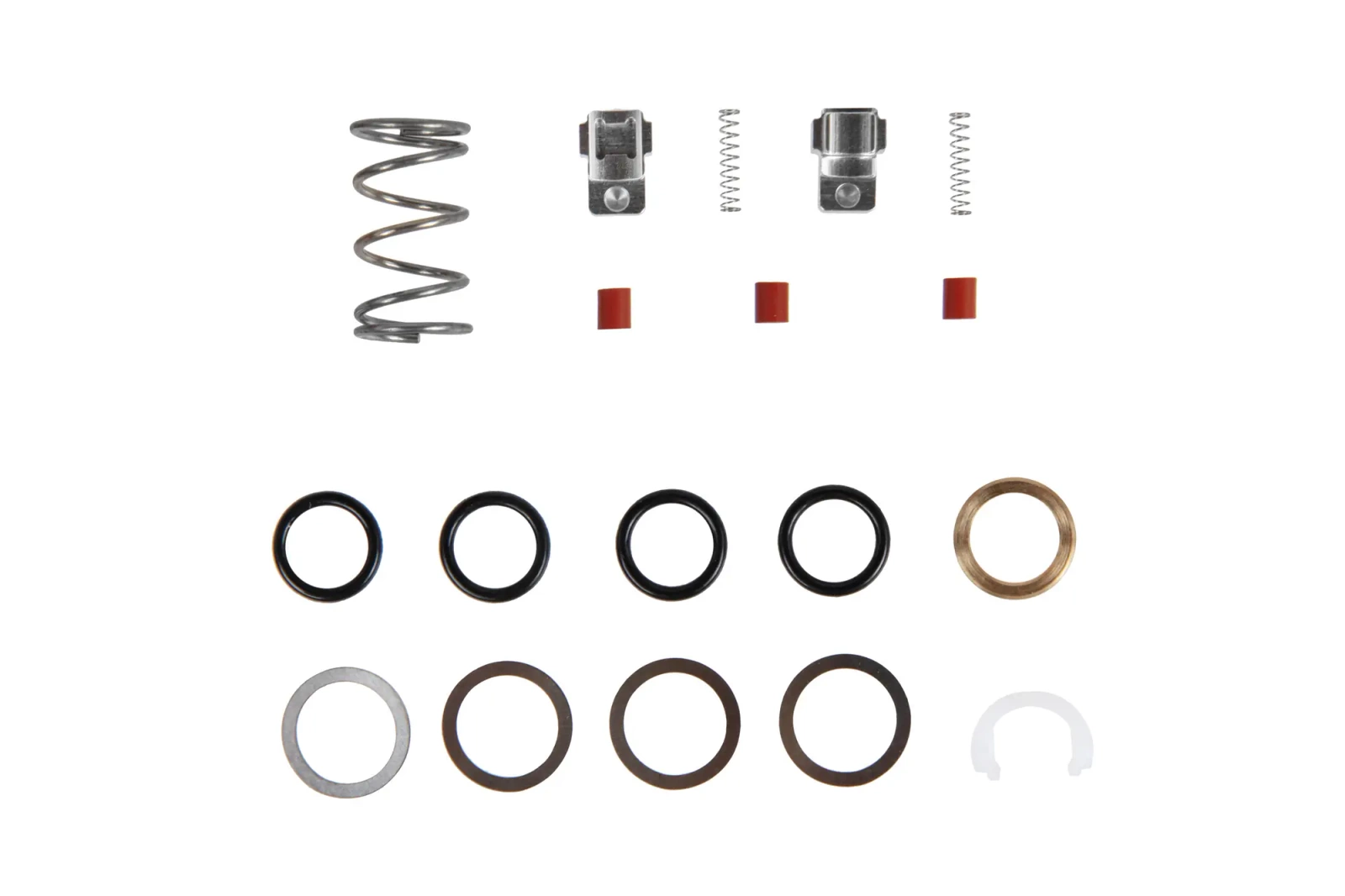

The kit includes:

1 x CNC chamber with BB Latching system
2 x CNC clear vinyl cover
2 x CNC brass side wing 2.9mm
1 x CNC steel Pivot Pin
1 x CNC aluminium HopUp arm
1 x CNC aluminium Soft Round Nub
1 x CNC aluminium Soft Flat Nub (4mm)
1 x CNC aluminium Hard Concave Nub CNC (4mm)
3 x steel Nub Spring
1 x steel spring guide CNC
1 x steel upper compression spring
1 x steel central compression spring
1 x Delrin Locking C-CNC Clip
1 x CNC Brass Barrel Spacer
1 x Brass Spacer Holder Oring
1 x CNC Aluminum Adjustment Knob
1 x CNC Aluminum Inlet Adaptor (12mm)
1 x CNC Brass Inlet Spacer
5 x Spacer Spacer
4 x Barrel O-ring
